SKU: CA-SH01 JAN: 4580462339536

Cars Corporation

Wireless Charging Smartphone Holder with Auto Open/Close, Qi Compatible, Max 15W Charging, 2-Way Mounting (Suction Cup/Clip)

¥3,520
By ANSWER・JAPAN

This next-generation smartphone holder uses the principle of electric vacuum suction; simply pressing your smartphone against the suction cup will cause a sensor to react, and the internal micro air pump will generate negative pressure to firmly attach it to the phone.
The internal negative pressure detection sensor constantly monitors the pressure, and if the suction power decreases, it automatically restarts to maintain a stable holding power.
It complies with the international wireless charging standard "Qi" and supports charging up to 15W.

■Product specifications

Product name Vacuum suction wireless charging smartphone holder
Material Aluminum alloy, PC, silicone
Input voltage 5V/9V/12V ±5% (QC, PD compatible)
Wireless Output 5W / 7.5W / 10W / 15W (conversion efficiency >73%)
Vacuum pressure 20KPA - 40KPA
Product size/weight Approx. 70 x 70 x 98 mm / Approx. 97g
Load-bearing capacity 240g (weight that can be supported by the product's adhesive power)

■About delivery and shipping fees

  • Shipping estimate: Ships within 3 business days after order confirmation
  • Shipping fee: 1,100 yen nationwide
    *Free shipping for purchases of 3,000 yen (tax included) or more per delivery.
▼ How to use
  1. Installation preparation: Loosen the fixing dial on the back of the holder, insert the air conditioner attachment and retighten.
  2. Angle adjustment: Adjust the angle using the ball joint and tighten the locking dial.
  3. Fixing: Attach to the air conditioner vent with the clips and support the main unit with the lower legs.
  4. Power supply: Insert the included charging cable (Type-C side) into the device.
  5. Adsorption and charging: Attach the vacuum suction cup to the receiving coil of the smartphone. Adsorption and charging will begin automatically.
  6. Removal: To remove your smartphone, hold it in your hand and press and hold the release button .

*You may hear the air pump running noise (motor noise) during use, but this is not a malfunction.
*If the suction power decreases, wipe off any dirt or dust from the suction surface.

⚠️ If you are unable to adsorb or charge

-Case material and thickness: The case cannot be adsorbed if it is made of a breathable material such as leather or cloth, or if the adsorption surface is uneven.
・Charging restrictions: Charging is not possible for cases that are 3mm or thicker or made of metal.
- Insufficient output: Make sure the USB socket has an output of 2A or more (charging is not possible with an output of less than 2A).
- Alignment: Make sure that the receiving coil of your smartphone and the suction cup part of this product are properly aligned.

*Protection function: If the temperature exceeds 60°C during charging or the output current exceeds 2.5A, the device will automatically stop charging.

⚠️ Set contents and precautions (please read) +

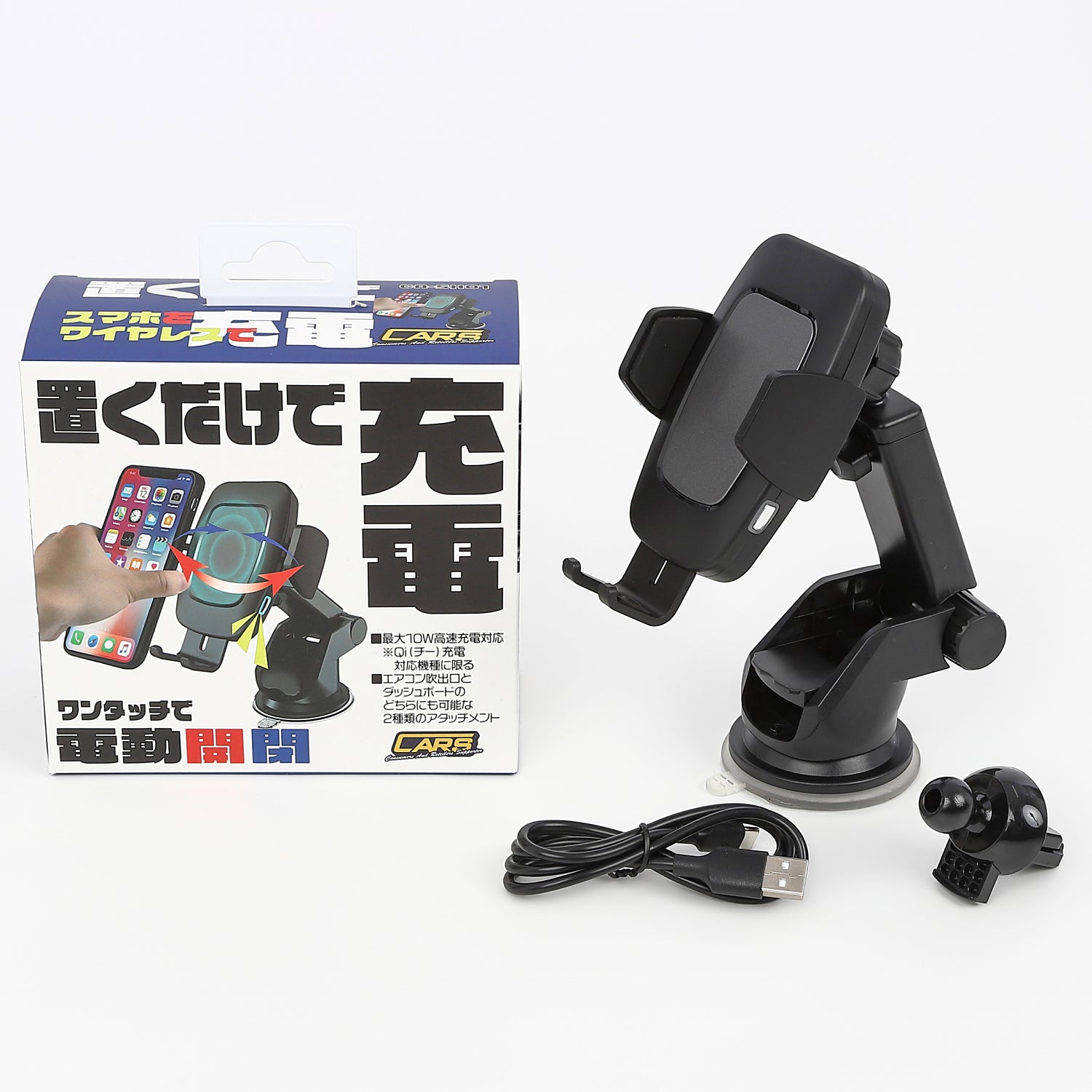

■ Set contents

  • Holder body x 1
  • Air conditioner vent attachment x 1
  • USB Type-A to C cable (approx. 1.0m) x 1

■ Notes

  • To maintain its adhesive power, a built-in battery (90mAh) is included, but wireless charging requires a constant power supply.
  • Do not use for any purpose other than intended.
  • Do not install in a location that may interfere with driving or obstruct your view.
